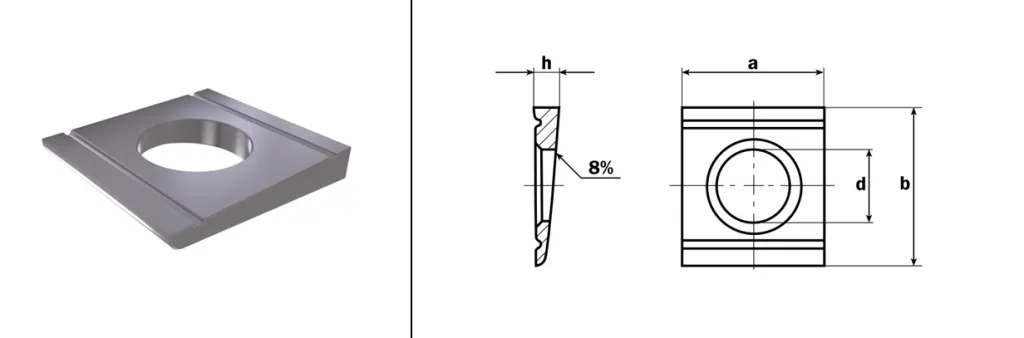

| D | M12 | M14 | M20 | M22 |
| d | 13 | 17 | 21 | 23 |
| a | 26 | 32 | 40 | 44 |
| b | 30 | 36 | 44 | 50 |
| h | 4,9 | 5,9 | 7 | 8 |
| Weight 1000 ud.kg. | ||||
| 18,30 | 31,70 | 57,10 | 82,80 | |
| D | M24 | M27 | M30 | M36 |
| d | 25 | 28 | 31 | 37 |
| a | 56 | 56 | 62 | 68 |
| b | 56 | 56 | 62 | 68 |
| h | 8,5 | 8,5 | 9 | 9,4 |
| Weight 1000 ud.kg. | ||||
All data for information purpose only. For more details on product standards or dimensions, please feel free to contact us at info@fastenersindia.in
